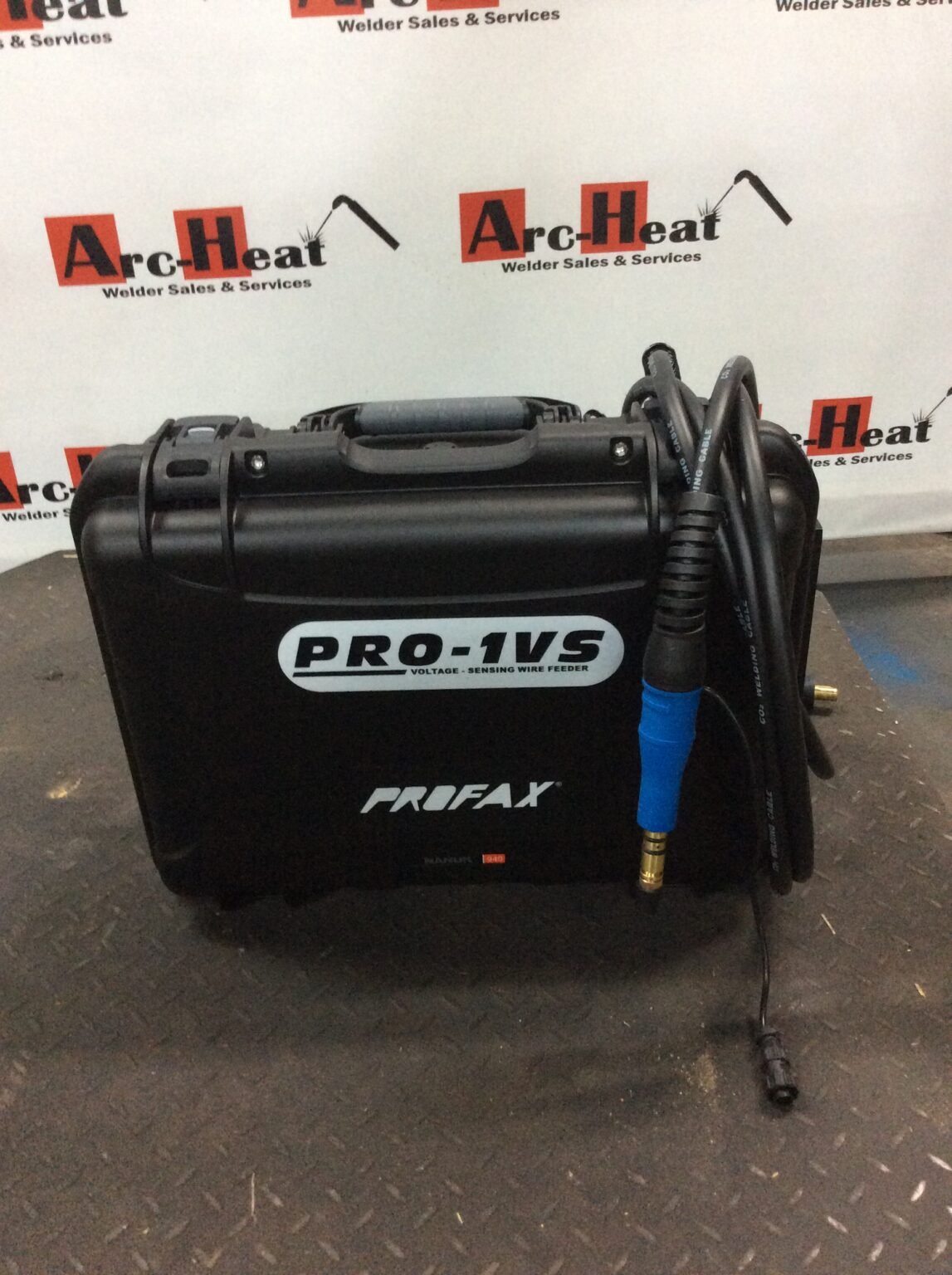

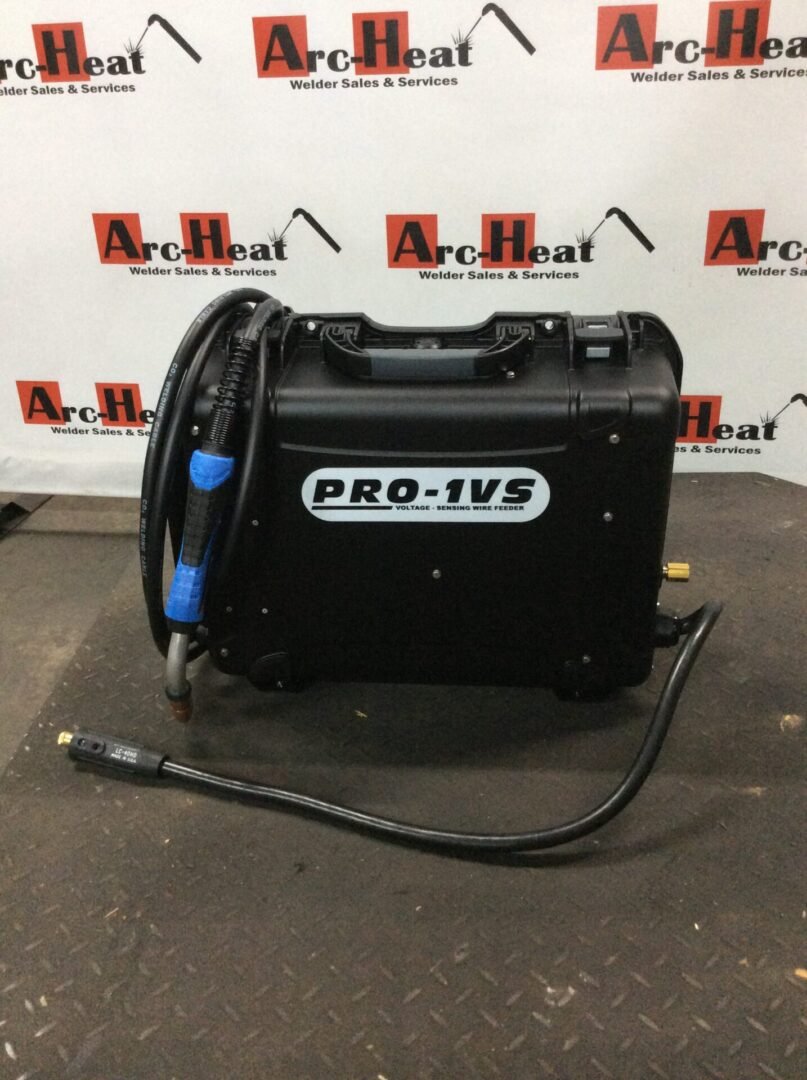

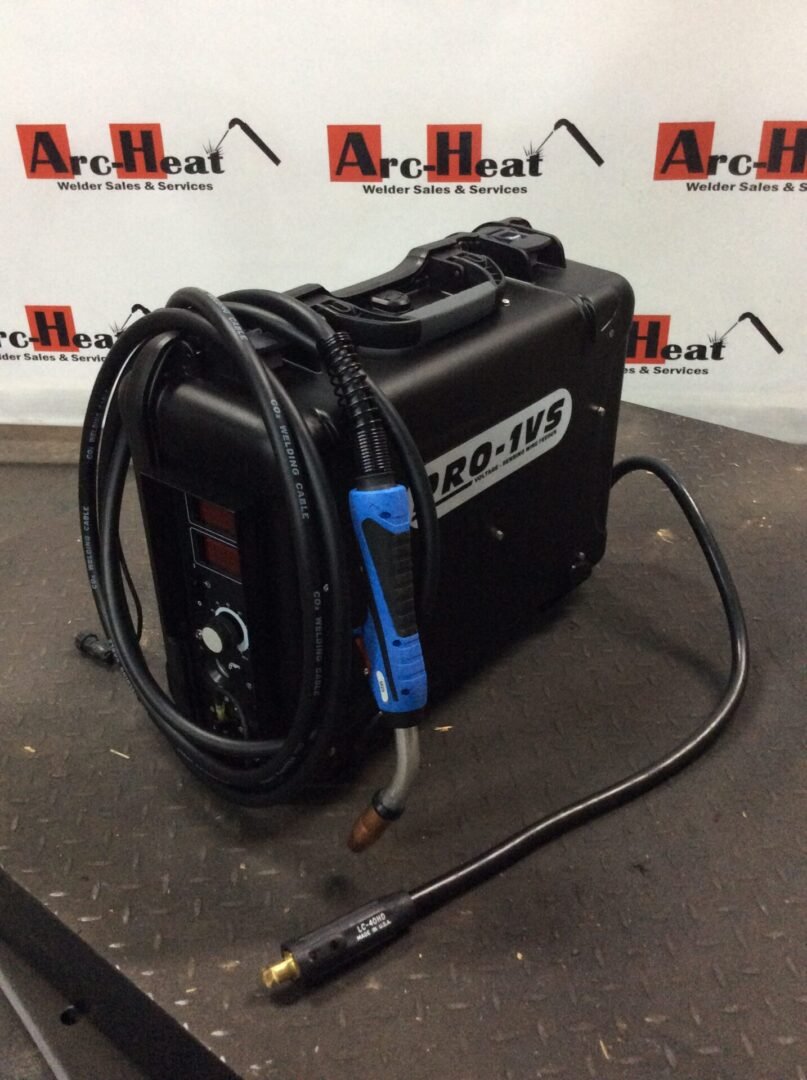

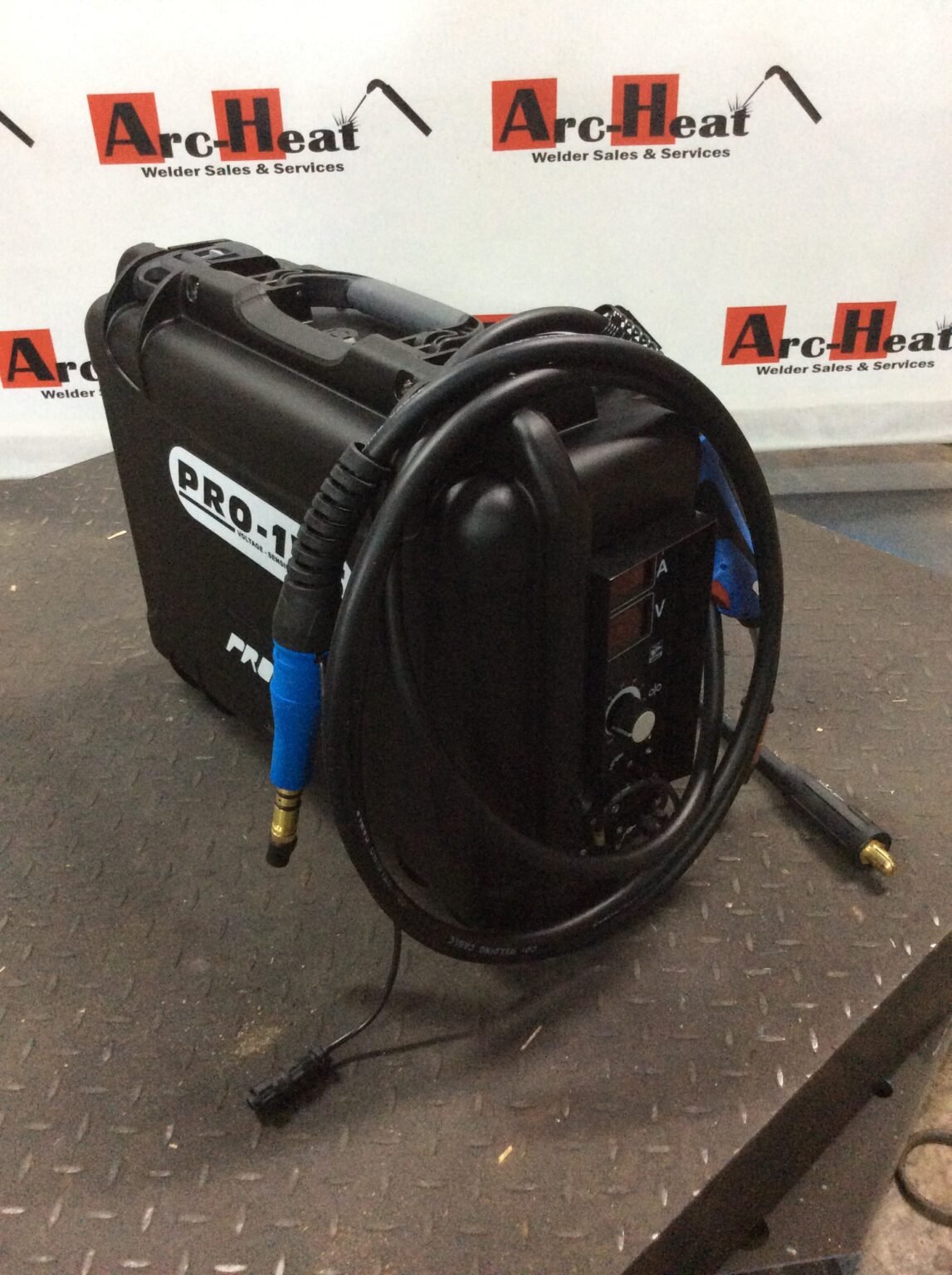

Profax 1VS Suitcase Feeder with Miller M-25 Style Gun
The Profax 1VS Suitcase Feeder with Miller M-25 Style Gun delivers dependable wire feeding, precise control, and rugged portability for professional welding applications. Designed as a high-quality alternative to the Lincoln® LN-25 and 12VS, this portable wire feeder provides reliable performance at a competitive value.
Whether you’re working in fabrication, field welding, maintenance, construction, or general repair, the Profax 1VS is built to provide consistent wire feeding and smooth operation in demanding environments.
Built for Efficient, Precise Welding
The Profax 1VS combines practical features with straightforward operation to help welders work efficiently. Its trigger-hold function helps reduce hand fatigue during longer welds, while the two gear-driven rolls provide reliable wire feeding and convenient tool-less roll changes.
The feeder includes .035″ and .045″ solid-wire drive rolls and is compatible with a Miller® M-25 style welding gun, making it a versatile option for a variety of welding setups.

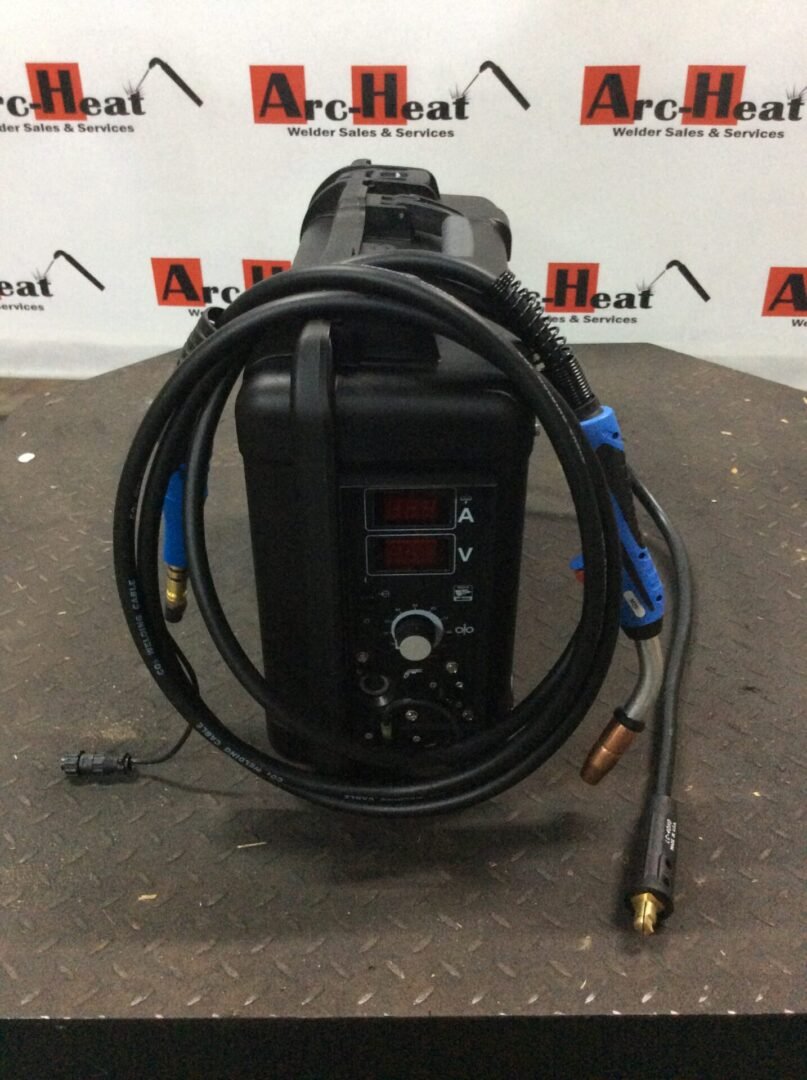

Integrated digital LED meters provide easy-to-read wire feed speed and amperage information, while the CC/CV mode selector allows the feeder to be configured for different welding power sources and applications.
Rugged Suitcase Design for Jobsite Use
Built for portability and durability, the Profax 1VS features a high-impact latching case, folding handle, and removable legs. At approximately 37 lbs., it provides a practical balance between durability and portability for field and shop applications.
With support for wire diameters from .023″ to 5/64″ and wire feed speeds from 60 to 800 IPM, the 1VS can accommodate a wide range of welding requirements.
The Profax 1VS is backed by a 3-year warranty, providing additional peace of mind for professional welders and fabrication shops.
Key Features
- Miller M-25 style gun included
- Designed as an alternative to Lincoln® LN-25 and 12VS feeders
- 400A welding circuit rating at 60% duty cycle
- Two gear-driven wire-feed rolls
- Tool-less drive-roll changes
- Trigger-hold function for improved operator comfort
- Digital LED wire feed speed and amperage meters
- CC/CV mode selector switch
- High-impact protective suitcase case
- Folding carrying handle
- Removable legs
- Supports .023″–5/64″ wire diameters
- 60–800 IPM wire feed speed
- 12″ spool capacity
- 3-year warranty
Profax 1VS Suitcase Feeder Specifications
| Specification | Details |
|---|---|
| Part Number | PX-PRO-1VS |
| Weld Circuit Rating | 400A @ 60% Duty Cycle |
| Spool Capacity | 12″ (304mm) |
| Input Power | Open Circuit Voltage & Arc 14–100V DC |
| Power Source Type | CC or CV (DC) |
| Wire Diameters | .023″–5/64″ (0.6–2.0mm) |
| Wire Feed Speed | 60–800 IPM (1.52–20.32 m/min) |
| Gas Inlet | 5/8″-18RH Female |
| Height | 17″ (432mm) |
| Width | 8.5″ (216mm) |
| Depth | 21.5″ (546mm) |
| Weight | 37 lbs. (17kg) |
Why Choose the Profax 1VS?
For welders looking for a portable wire feeder with reliable wire control, durable construction, and flexible CC/CV operation, the Profax 1VS offers a practical solution for both shop and field welding.
Its rugged suitcase design, broad wire-size compatibility, digital monitoring, and Miller M-25 style gun compatibility make it suitable for professional welding contractors, fabricators, maintenance teams, and experienced DIY welders.
Order the Profax 1VS Suitcase Feeder with Miller M-25 Style Gun today and equip your welding setup with a portable feeder designed for dependable performance and demanding applications.
