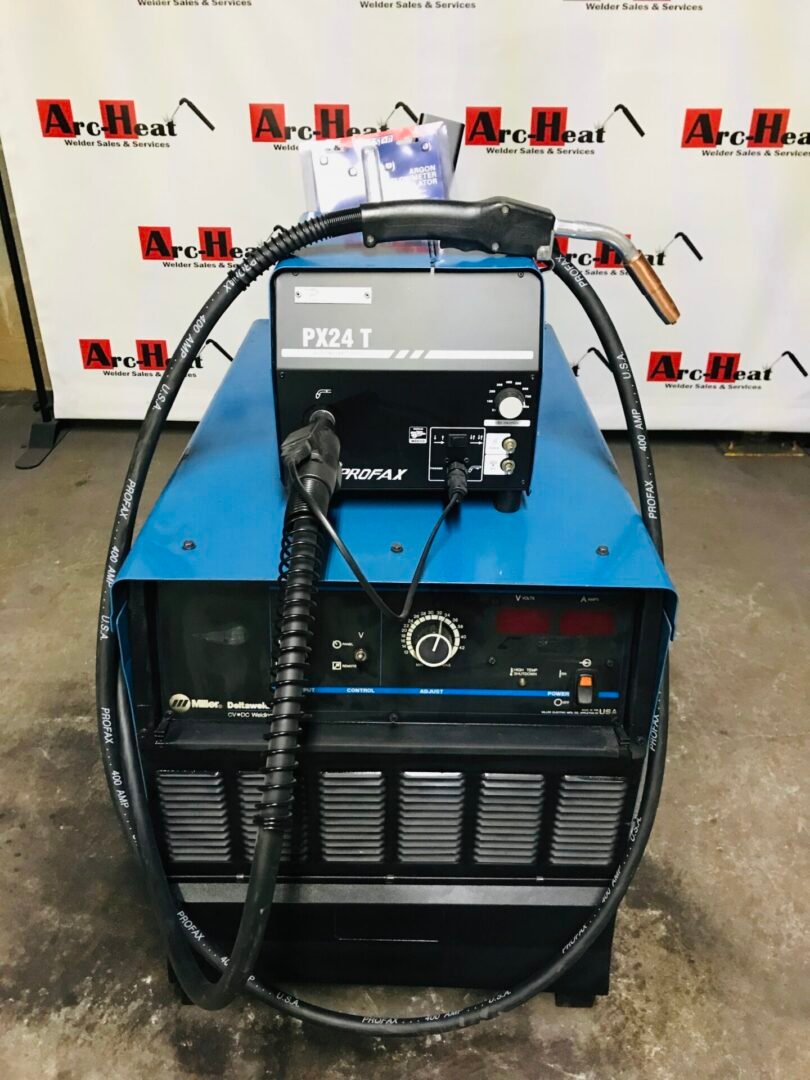

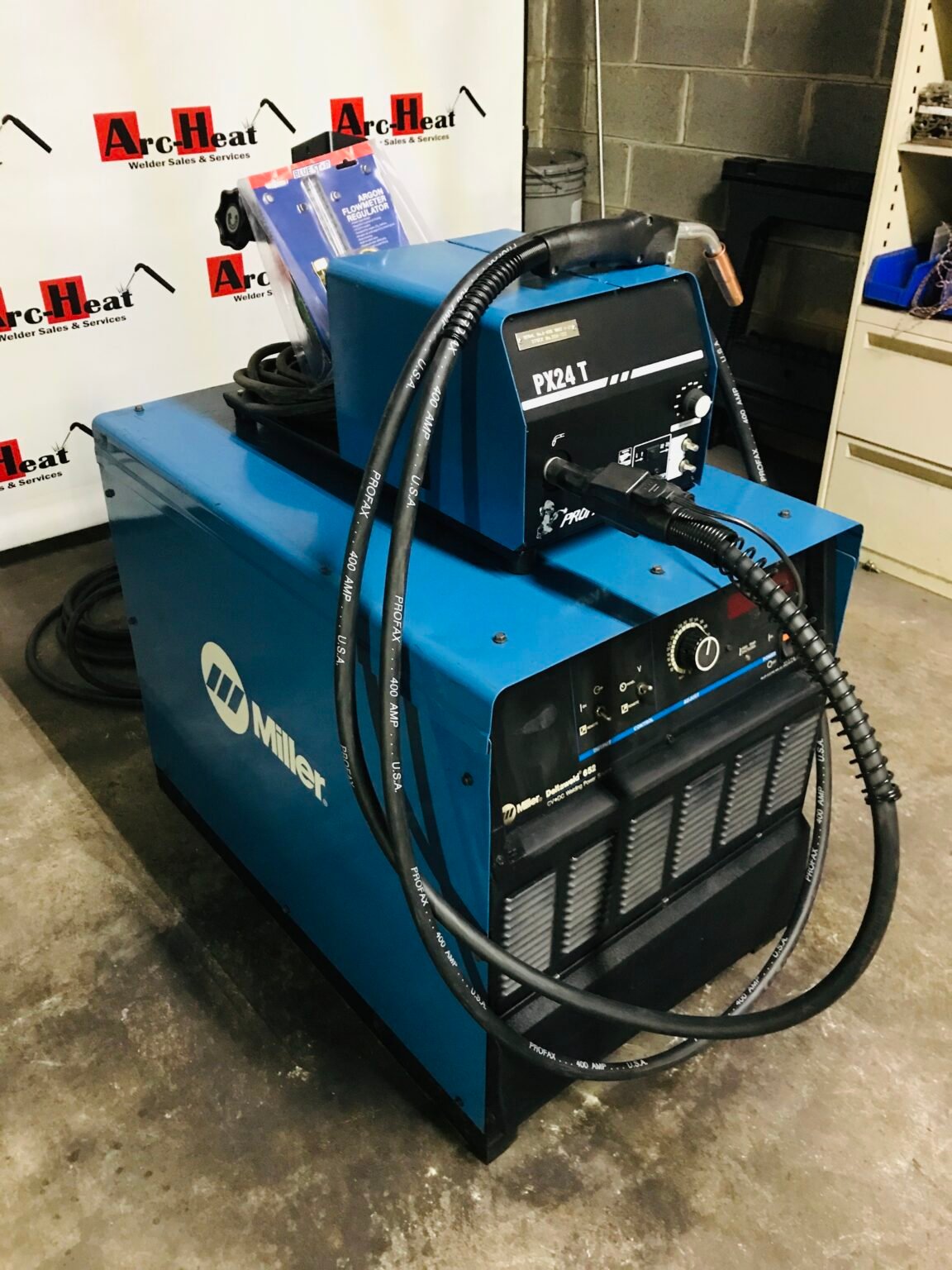

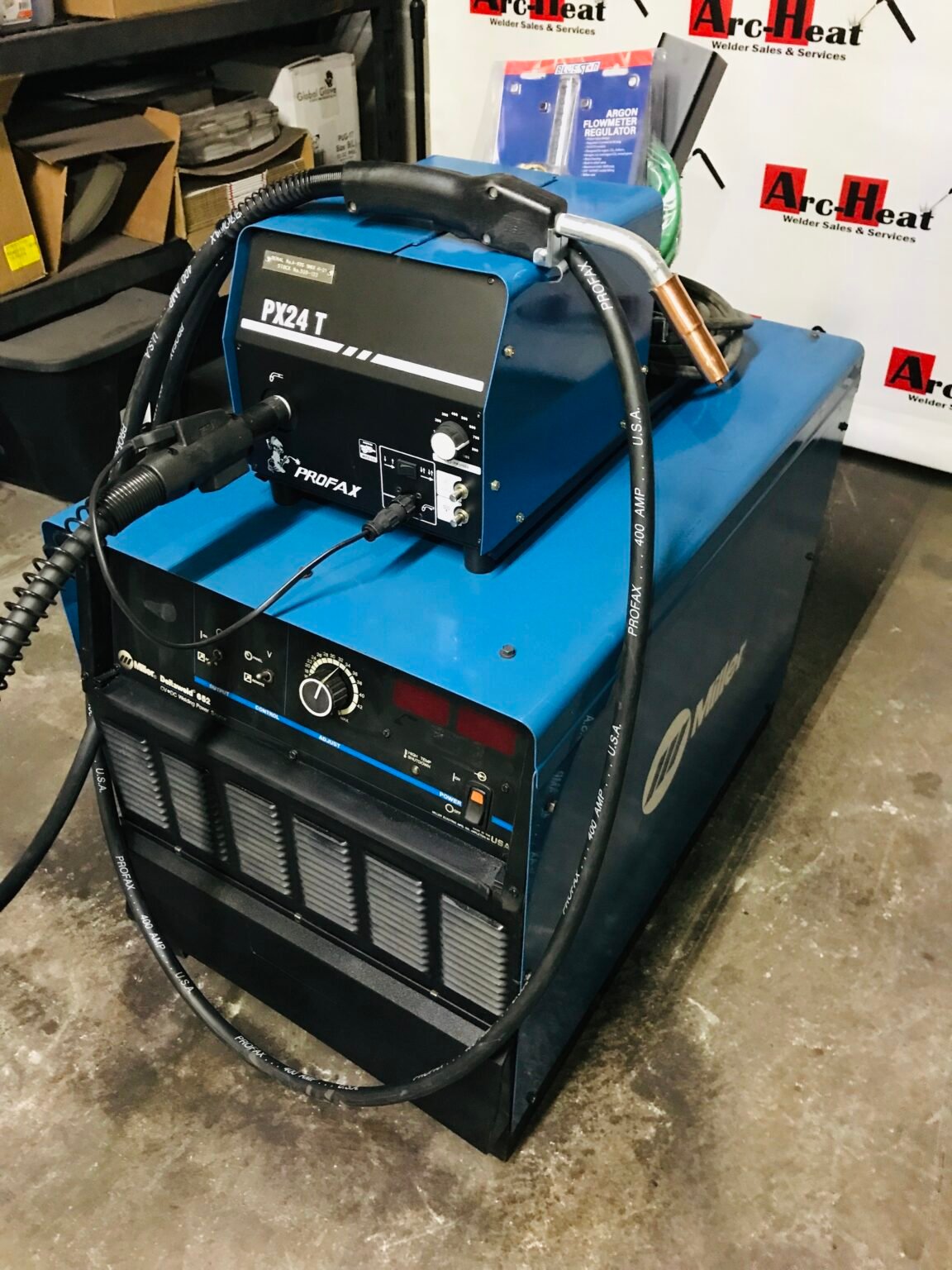

Miller Deltaweld 652 MIG Welder 650A Industrial Welding Machine
The Miller Deltaweld 652 MIG Welder is a heavy-industrial MIG welding machine designed for demanding fabrication, manufacturing, construction, maintenance, and repair applications. With a rated output of 650 amps at 44 volts DC and a 100% duty cycle, the Deltaweld 652 is built for extended arc-on time and high-output welding operations.
Designed as a CV/DC three-phase welding power source, the Deltaweld 652 supports MIG (GMAW), flux-cored (FCAW), submerged arc (SAW), and air carbon arc gouging (CAC-A) applications, depending on the welding setup and accessories used. Miller identifies the Deltaweld 652/852 class as a heavy-industrial MIG welding solution for manufacturing operations.
650A Heavy-Duty MIG Welding Performance
The Miller Deltaweld 652 is designed for welding operations where sustained output and consistent arc performance are important. Its 650A at 44V DC, 100% duty-cycle rating allows continuous welding at the rated output within the machine’s specified operating conditions.
The machine provides a 10–44V voltage range, with Miller listing a recommended welding range of 15–44V. Its maximum open-circuit voltage is specified at 54V DC for the applicable configuration.
For a professional welding operation, this combination of output capacity and continuous-duty performance makes the Deltaweld 652 appropriate for applications that require substantial welding current over extended periods.
Built for Professional MIG and Flux-Cored Welding
The Deltaweld 652 is primarily designed around MIG welding and flux-cored welding applications.
MIG Welding – GMAW
When connected to a compatible wire feeder, the Deltaweld 652 provides a high-output CV welding power source for professional MIG welding.
This makes it suitable for fabrication environments where operators need consistent voltage control and substantial welding output for production work.
Flux-Cored Welding – FCAW
The Deltaweld 652 also supports flux-cored arc welding, providing an option for applications where FCAW is preferred for its deposition characteristics and suitability for demanding fabrication work.
Submerged Arc Welding – SAW
Miller documentation identifies submerged arc welding among the processes supported by the Deltaweld 652 family when properly configured.
Air Carbon Arc Gouging
The Deltaweld 652 is also capable of air carbon arc gouging (CAC-A). Miller’s product literature identifies the 652 for gouging applications using carbon electrodes up to 3/8 inch (9.5 mm).
Designed for Heavy-Industrial Welding
The Miller Deltaweld 652 welding machine is intended for substantially more demanding applications than a typical light-duty MIG welder.
Miller identifies applications including:
- Heavy equipment manufacturing
- Truck and trailer manufacturing
- Ship and boat building
- Tank and pressure-vessel fabrication
- Automotive equipment manufacturing
- Railcar and locomotive fabrication and repair
- Structural steel fabrication
- Sheet-metal fabrication
- Maintenance and repair
- Industrial manufacturing
These applications are consistent with Miller’s published Deltaweld series literature.
Line Voltage Compensation for Consistent Welding
The Deltaweld series incorporates Line Voltage Compensation (LVC) to help maintain consistent welding performance when the incoming primary voltage varies within the machine’s specified operating range.
For professional welders, consistent output is particularly important when performing repetitive production work or welding applications where changes in welding parameters can affect bead profile and overall weld quality.
Miller identifies line-voltage compensation as one of the Deltaweld series features designed to maintain consistent weld performance when primary power varies.
Fan-On-Demand Cooling
The Deltaweld 652 uses Miller’s Fan-On-Demand™ cooling system. Rather than continuously operating the cooling fan, the system runs the fan when cooling is required.
Miller states that this design can reduce unnecessary noise and power consumption while limiting the amount of airborne contaminants drawn into the machine.
For welding shops and industrial environments, this can be useful in maintaining equipment airflow while reducing unnecessary fan operation.
Digital Voltage and Amperage Meters
The Deltaweld 652 features digital voltage and amperage meters designed to provide clear visibility of welding parameters.
The control panel includes:
- Voltage adjustment control
- Output switch
- Remote voltage control switch
- Digital voltage and amperage meters
- Power switch with indicator light
- High-temperature shutdown indicator
These controls provide the operator with straightforward access to the primary functions needed during welding setup and operation.
Built for a Complete MIG Welding System
The Deltaweld 652 is a welding power source, so buyers should distinguish between the machine itself and a complete MIG welding package.
A complete system may include a compatible wire feeder, MIG gun, welding cables, running gear, cylinder rack, remote controls, and other accessories.
Miller’s published Deltaweld literature identifies 70 Series wire feeders and other accessories for building a complete welding system.
Power Source Only
The machine-only configuration is appropriate for customers who already have compatible welding accessories and a suitable wire feeder.
MIG Welding Package
A package configuration may include a compatible wire feeder and additional welding accessories.
Always verify the exact package contents before ordering. The included feeder, MIG gun, cables, cart, regulator, and other accessories should be listed specifically for the configuration being sold.
14-Pin Wire Feeder Connection
The Deltaweld 652 is designed to integrate with compatible wire feeders and welding accessories. Its control system provides remote-control capability, allowing welding parameters to be adjusted through compatible equipment. Miller identifies compatible feeder and accessory options within the Deltaweld system.
This makes the Deltaweld 652 a suitable foundation for building a professional MIG welding system rather than simply operating it as an isolated power source.
Miller Deltaweld 652 Specifications
| Specification | Details |
|---|---|
| Product | Miller Deltaweld 652 |
| Welding Processes | MIG (GMAW), Flux-Cored (FCAW), Submerged Arc (SAW), Air Carbon Arc Gouging (CAC-A) |
| Power Source Type | CV/DC |
| Input Power | 3-Phase |
| Rated Output | 650A at 44V DC |
| Duty Cycle | 100% |
| Voltage Range | 10–44V DC |
| Recommended Welding Range | 15–44V |
| Maximum Open-Circuit Voltage | 54V DC |
| Height | 30 in. / 762 mm |
| Width | 23 in. / 585 mm |
| Depth | 38 in. / 966 mm |
| Net Weight | 472 lbs. / 214 kg |
| Cooling System | Fan-On-Demand™ |
| Input Configuration | Configuration dependent |
The published specifications above correspond to the applicable Deltaweld 652 configuration documented by Miller. Input current varies according to primary voltage; Miller lists 230, 380, 400, 440, 460, and 575V values for the documented configuration.
Miller Deltaweld 652 Input Power
The Deltaweld 652 is a three-phase welding power source. Miller’s published specifications list input configurations including:
- 230V
- 380V
- 400V
- 440V
- 460V
- 575V
The exact electrical configuration should always be confirmed from the machine’s nameplate and ordering number before installation.
Professional buyers should ensure that the available electrical service matches the specific Deltaweld 652 configuration being purchased.
Deltaweld 652 Applications
Heavy Equipment Manufacturing
The high-output design of the Deltaweld 652 makes it suitable for heavy equipment fabrication and manufacturing environments where extended welding operation is required.
Truck and Trailer Manufacturing
The 650A welding power source can be incorporated into high-production MIG and flux-cored welding systems used in truck and trailer fabrication.
Structural Steel Fabrication
For structural fabrication shops, the Deltaweld 652 provides the high-current output required for demanding welding applications when paired with an appropriate feeder and welding procedure.
Ship and Boat Building
Miller lists ship and boat building among the Deltaweld series’ heavy-industrial applications.
Tank and Pressure-Vessel Fabrication
The Deltaweld 652 can be incorporated into suitable industrial welding systems used for tank and pressure-vessel fabrication.
Maintenance and Repair
The machine’s MIG, flux-cored and gouging capabilities make it useful for industrial maintenance and repair operations where high welding output is required.
Who Is the Miller Deltaweld 652 For?
The Miller Deltaweld 652 MIG Welder is intended for professional and industrial users who require substantially more output than a typical shop MIG welder.
It can be suitable for:
- Professional welders
- Fabrication shops
- Manufacturing facilities
- Heavy equipment manufacturers
- Structural steel fabricators
- Truck and trailer manufacturers
- Industrial maintenance departments
- Shipbuilding operations
- Repair facilities
- Production welding environments
Because the machine weighs approximately 472 lbs., it should be considered an industrial power source designed for shop and production environments rather than a lightweight portable welder.
What’s Included?
Package contents depend on the configuration selected.
Before purchasing, verify whether your selected option includes:
- Miller Deltaweld 652 power source
- Wire feeder
- MIG welding gun
- Welding cables
- Work clamp
- Running gear/cart
- Cylinder rack
- Remote control
- Regulator/flowmeter
- Other accessories
If a product is listed as Machine Only, customers should not assume that a wire feeder, MIG gun, cart, cables, or other accessories are included.
For used welding equipment, the listing should also clearly state the machine’s condition, testing status, included accessories, and any visible cosmetic or functional issues.
Miller Deltaweld 652 Condition and Testing
For a used or refurbished Deltaweld 652, buyers should be provided with clear information regarding the machine’s actual condition.
If the machine has been tested by your team, use a statement such as:
This welding machine has been professionally inspected and tested for operation before shipment.
Only state that the machine was tested by a Miller Service Center or factory-authorized service provider if you can substantiate that claim.
Clear condition information is particularly important for high-value industrial welding equipment.
Why Choose the Miller Deltaweld 652?
The Miller Deltaweld 652 is designed for customers who need a high-output industrial welding power source capable of sustained operation.
Its combination of:
- 650A output
- 100% duty cycle
- 10–44V voltage range
- MIG and flux-cored capability
- Submerged arc capability
- Air carbon arc gouging
- Line Voltage Compensation
- Fan-On-Demand cooling
- Digital voltage and amperage meters
- Remote-control capability
makes it a flexible platform for demanding welding operations.
For fabrication shops and industrial welding operations, the Deltaweld 652 can serve as the central power source in a properly configured MIG or flux-cored welding system.
Frequently Asked Questions
Is the Miller Deltaweld 652 a MIG welder?
The Deltaweld 652 is a CV/DC welding power source designed for MIG and flux-cored welding, along with submerged arc and air carbon arc gouging applications. A compatible wire feeder and appropriate accessories are required for a complete MIG welding setup.
How many amps is the Miller Deltaweld 652?
The Deltaweld 652 is rated at 650 amps at 44 volts DC with a 100% duty cycle.
What is the voltage range?
The documented voltage range is 10–44V DC, with a recommended welding range of 15–44V.
How much does a Miller Deltaweld 652 weigh?
The published net weight is approximately 472 lbs. (214 kg). This is the power-source weight and does not necessarily represent the total weight of a complete feeder, cart, cable, and accessory package.
What welding processes can the Deltaweld 652 perform?
Miller documentation identifies MIG (GMAW), flux-cored (FCAW), submerged arc (SAW), and air carbon arc gouging (CAC-A) for the Deltaweld 652.
Does the Deltaweld 652 include a wire feeder?
That depends on the package selected. The machine-only configuration does not automatically mean a wire feeder or MIG gun is included. Verify the exact package contents before ordering.
Is the Miller Deltaweld 652 suitable for heavy-duty welding?
The Deltaweld 652 is designed as a heavy-industrial welding power source and is rated for 650A at 44V with a 100% duty cycle. Miller lists heavy equipment, structural steel, truck and trailer, shipbuilding, tank/pressure-vessel, manufacturing, and maintenance applications for the Deltaweld series.
Shop the Miller Deltaweld 652 MIG Welder
The Miller Deltaweld 652 MIG Welder provides the high-output capability and industrial-duty performance required for demanding fabrication, manufacturing, maintenance, and repair applications.
If you need a 650A MIG welding machine, heavy-industrial welding power source, or Miller welding equipment for a professional fabrication operation, the Deltaweld 652 provides a substantial platform for building a complete MIG or flux-cored welding system.
Select the appropriate Deltaweld 652 configuration and verify the input voltage, condition, feeder, accessories, and package contents before ordering.
Shop the Miller Deltaweld 652 MIG Welder, a 650A industrial welding machine with 100% duty cycle for MIG, flux-cored, submerged arc and gouging applications.
