Miller SuitCase X-TREME 12VS Voltage-Sensing Wire Feeder

The Miller SuitCase X-TREME 12VS is a portable, heavy-duty voltage-sensing wire feeder designed for professional MIG and flux-cored welding applications. Built for use with compatible CC or CV DC welding power sources, the 12VS operates from the welding circuit rather than requiring a conventional separate control power connection. Miller rates the feeder at 425 amps at 60% duty cycle, with a wire feed speed range of 50–780 IPM.

With its durable portable design, 12-inch spool capacity, digital meters, trigger hold, wire jog and gas purge controls, the SuitCase X-TREME 12VS is well suited to fabrication, construction, shipbuilding, maintenance and field welding applications where the wire feeder needs to be positioned close to the work.

Choose Your 12VS Configuration

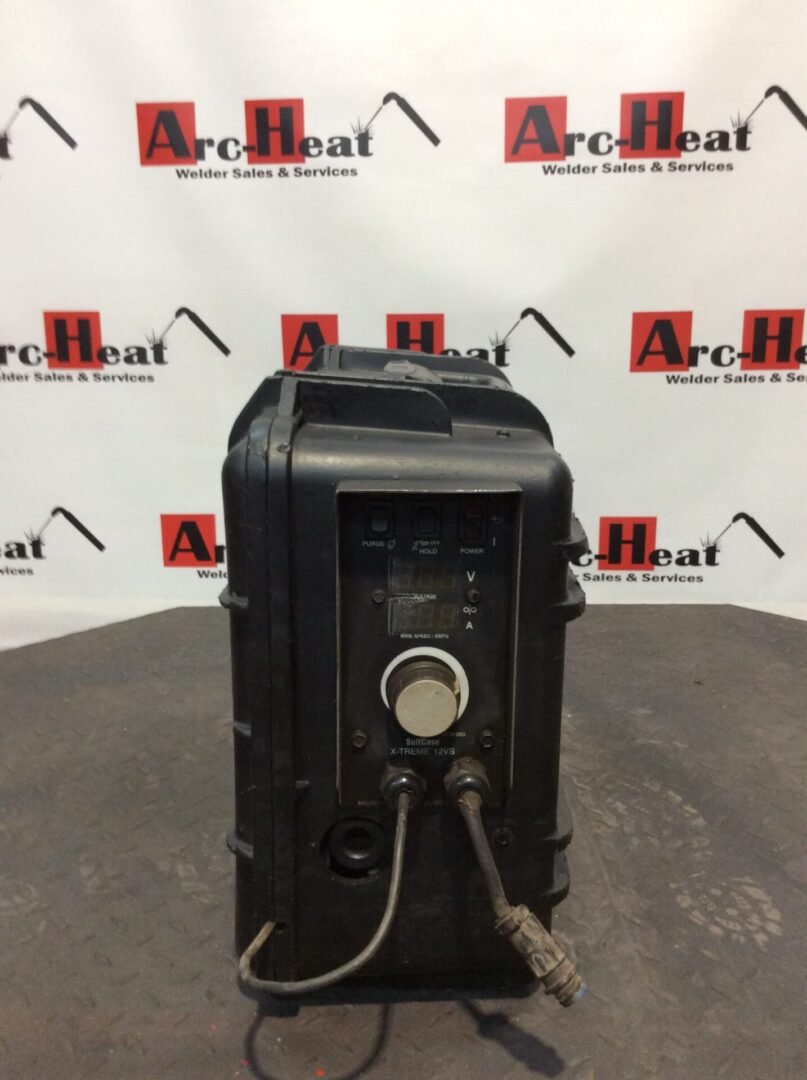

Feeder Only

The Feeder Only option includes the Miller SuitCase X-TREME 12VS voltage-sensing wire feeder.

This configuration is appropriate when you already have a compatible welding gun, welding power source and required welding leads.

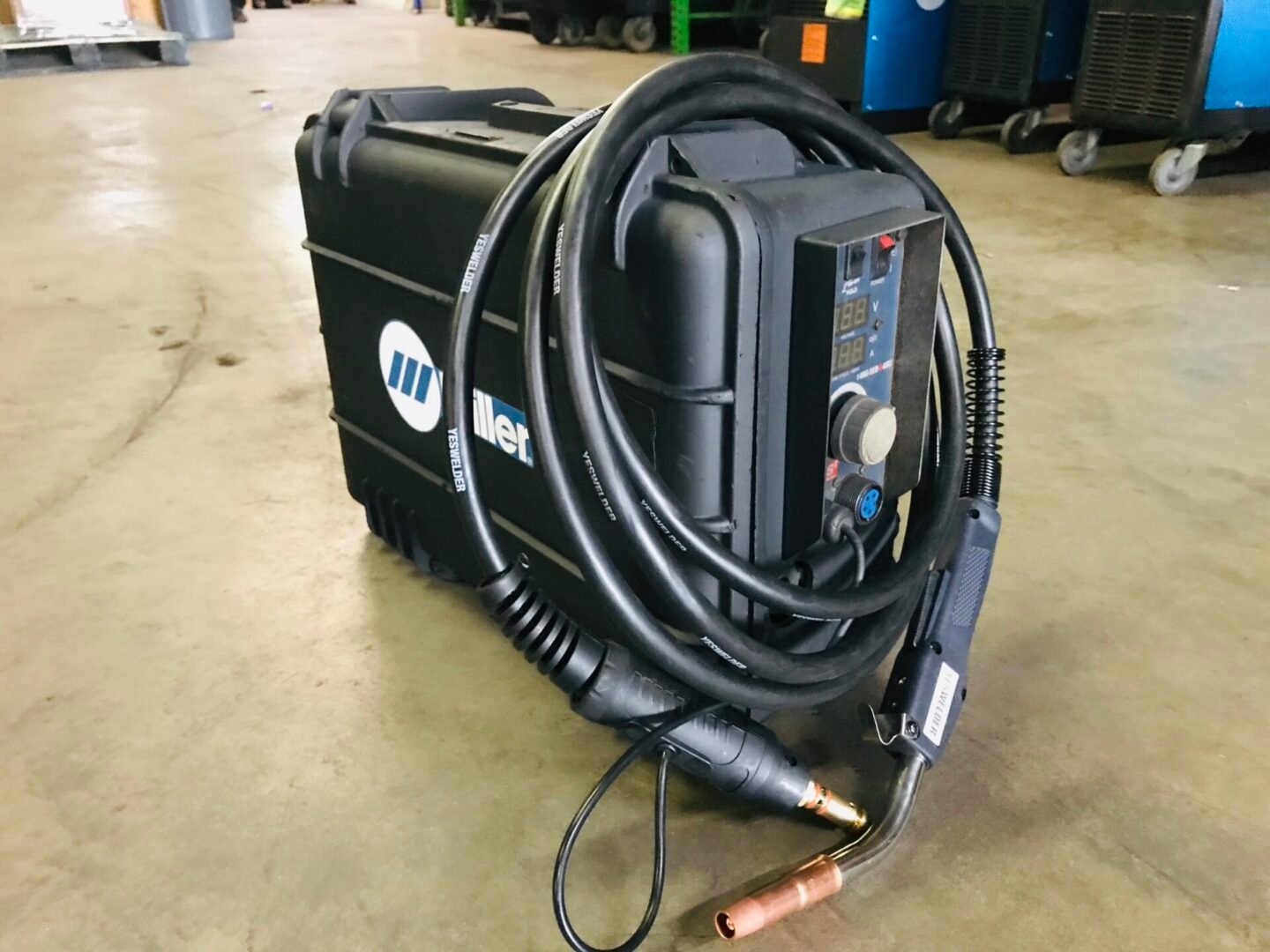

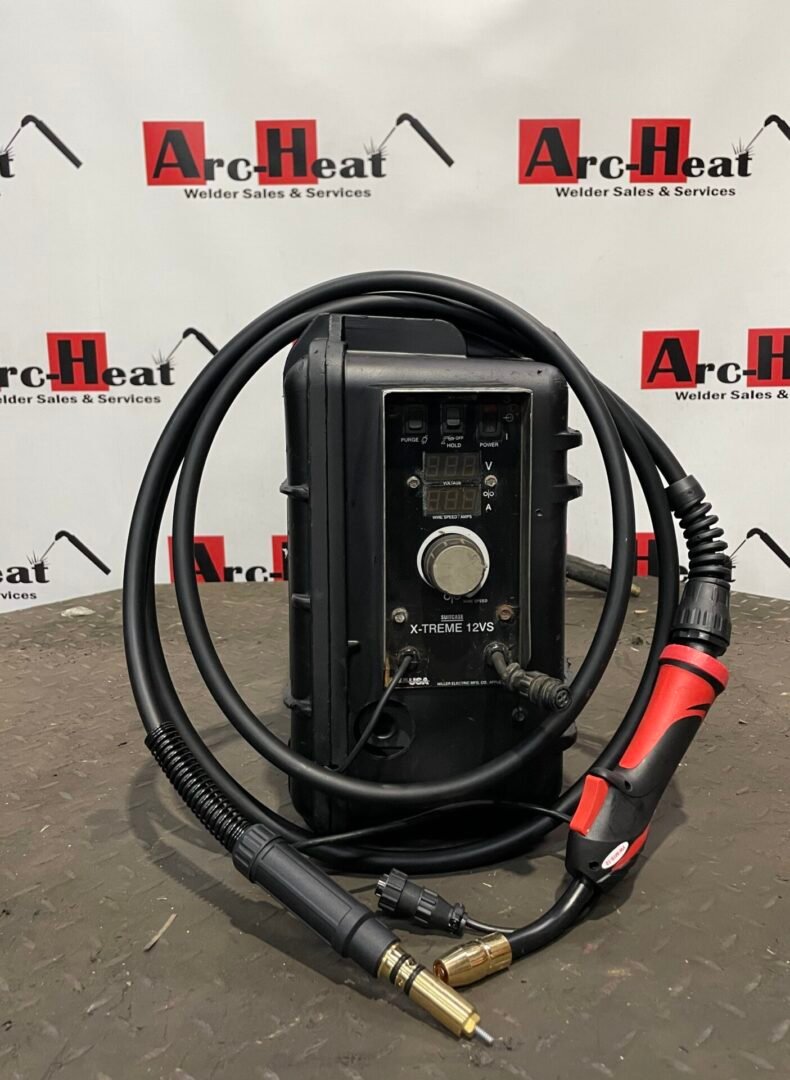

12VS With Profax MIG Gun

The 12VS + Profax Gun option combines the Miller SuitCase X-TREME 12VS with a compatible Profax MIG gun for customers who need a ready-to-configure wire-feeding setup.

Verify the exact Profax gun model, amperage rating and included accessories before ordering.

Important: The SuitCase X-TREME 12VS is a wire feeder, not a standalone welding power source. A compatible CC or CV DC welding power source is required for operation.

425-Amp Wire Feeder for Professional Welding

The X-TREME 12VS is rated for 425 amps at a 60% duty cycle, giving it the capacity required for demanding MIG and flux-cored welding applications.

Its voltage-sensing design allows the feeder to operate from the open-circuit and arc voltage supplied by a compatible welding power source. Miller specifies an operating range of 14–48 VDC with a 110 VDC maximum open-circuit voltage.

This makes the 12VS particularly useful for applications where a portable feeder needs to be moved around a fabrication area or taken directly to the workpiece.

Voltage-Sensing Operation

Unlike a conventional feeder that relies on a dedicated control connection from the power source, the Miller SuitCase X-TREME 12VS senses the welding circuit voltage.

The feeder is designed for use with compatible CC or CV DC power sources. Miller specifically states that AC power sources are not recommended.

This design makes the feeder a practical choice for field welding setups where portability and flexible equipment placement are important.

50–780 IPM Wire Feed Speed

The X-TREME 12VS provides a wire feed speed range of 50–780 inches per minute (IPM), or approximately 1.3–19.8 meters per minute. Actual wire feed speed in CC mode depends on the arc voltage supplied to the feeder.

The wide adjustment range allows the feeder to accommodate different welding applications and wire sizes within its specified operating range.

Wire Compatibility

The Miller SuitCase X-TREME 12VS is designed for both solid and flux-cored welding wire.

Solid Wire

Compatible solid-wire diameter range:

.023–.052 in. (0.6–1.4 mm)

Flux-Cored Wire

Compatible flux-cored wire diameter range:

.030–5/64 in. (0.8–2.0 mm)

Always match the wire diameter, drive rolls, gun liner and consumables to the welding application.

12-Inch Spool Capacity

The 12VS accommodates 12-inch wire spools up to 45 lb (20 kg), providing substantially more wire capacity than the smaller SuitCase X-TREME 8VS.

The larger spool capacity makes the 12VS particularly useful for structural steel, fabrication and other applications where longer welding periods between spool changes are desirable. Miller identifies 12-inch spools as a common choice for structural steel and fabrication applications.

Key Features

Portable SuitCase Design

The compact feeder design allows the operator to position the wire feeder close to the work rather than keeping it permanently mounted beside the welding power source.

The feeder weighs approximately 35 lb (15.9 kg) without wire or additional accessories.

Digital SunVision™ Meters

The 12VS features digital meters designed to make welding parameters easier to view during operation.

Miller’s documentation identifies the 12VS control panel with voltage and wire-speed/amperage displays.

Trigger Hold

The trigger-hold function can help reduce operator fatigue during longer continuous welds by allowing the operator to maintain wire feeding without continuously holding the gun trigger.

Wire Jog

The front-panel jog control allows the operator to feed wire through the system during setup without initiating a welding arc.

Gas Purge

The gas-purge function allows shielding gas to be flowed through the gun during setup and gas-line checks without initiating welding.

Heavy-Duty Drive System

The feeder uses a heavy-duty drive motor designed to provide consistent wire feeding during welding operations. Miller also identifies tachometer-controlled wire feeding on current SuitCase/12-series products for consistent feed performance.

Potted and Trayed Circuit Board

The main circuit board is potted and trayed to help protect the electronics in demanding welding environments. Miller describes this construction as intended for harsh environments.

Trigger Isolation

The feeder’s trigger-isolation design helps prevent a shorted gun trigger from affecting feeder operation.

Protected Gas Connection

The recessed gas inlet helps protect the connection from incidental contact with the welding cable while helping maintain a clean shielding-gas path.

Technical Specifications

Specifications are based on Miller’s published X-TREME 12VS documentation. Always verify the feeder nameplate and compatibility with your welding power source before installation.

MIG and Flux-Cored Welding

The SuitCase X-TREME 12VS is designed primarily for MIG (GMAW) and Flux-Cored (FCAW) welding.

MIG Welding

For MIG applications, the feeder delivers solid welding wire from the spool through the drive system and gun to the workpiece while the compatible power source supplies the welding current.

Flux-Cored Welding

For flux-cored applications, the 12VS can feed compatible flux-cored wire within its specified diameter range.

Flux-cored welding makes the feeder useful for structural fabrication, construction and field welding applications where portable wire feeding is important.

Applications

The Miller SuitCase X-TREME 12VS is suitable for a variety of professional welding environments, including:

• Structural steel fabrication
• Heavy fabrication
• Construction
• Shipbuilding
• Manufacturing
• Equipment repair
• Maintenance
• Field welding
• Industrial welding
• Truck and trailer fabrication
• General metal fabrication

Miller identifies applications including shipbuilding, construction, heavy manufacturing and rental operations for the X-TREME 12VS platform.

What’s Included

Feeder Only

• Miller SuitCase X-TREME 12VS wire feeder
• Standard feeder components supplied with the selected configuration

With Profax MIG Gun

• Miller SuitCase X-TREME 12VS wire feeder
• Profax MIG gun
• Applicable gun connection/components supplied with the selected configuration

Welding power source, welding cable, shielding-gas equipment and wire are not automatically included unless specifically listed with the selected package.

If you need a complete welding setup, confirm the power source, gun, cable length, wire type and other accessories before ordering.

Why Choose the SuitCase X-TREME 12VS?

The 12VS is designed for welders who need the flexibility of a portable wire feeder rather than a permanently mounted feeder.

Its combination of voltage-sensing operation, 425-amp welding-circuit capacity, 12-inch spool support and 50–780 IPM wire feed speed makes it suitable for demanding MIG and flux-cored applications.

Key Advantages

• 425A at 60% duty cycle
• Voltage-sensing operation
• 50–780 IPM wire feed speed
• 12-inch spool capacity
• Up to 45-lb wire spool
• 35-lb portable feeder
• Digital voltage and wire-speed/amperage meters
• Trigger hold
• Wire jog
• Gas purge
• Heavy-duty construction
• Suitable for solid and flux-cored wire
• Compatible with CC/CV DC power sources

Frequently Asked Questions

Is the Miller SuitCase X-TREME 12VS a welder?

The 12VS is a wire feeder, not a standalone welding power source. It must be connected to a compatible CC or CV DC welding power source to perform welding.

What is the amperage rating of the 12VS?

The Miller SuitCase X-TREME 12VS has an input welding circuit rating of 425 amps at 60% duty cycle.

What wire speed does the 12VS provide?

The specified wire feed speed is 50–780 IPM, with actual range in CC mode dependent on the arc voltage supplied.

What size spool does the 12VS use?

The 12VS accepts a 12-inch spool up to 45 lb (20 kg).

What size welding wire can I use?

The feeder supports solid wire from .023–.052 inch and flux-cored wire from .030–5/64 inch, subject to the applicable setup and consumables.

Can the 12VS be used for flux-cored welding?

Yes. The X-TREME 12VS is designed for MIG and flux-cored welding applications and supports flux-cored wire within its specified diameter range.

What type of welding power source does the 12VS require?

Miller specifies the 12VS for use with CC or CV DC power sources. AC power sources are not recommended.

How much does the Miller 12VS weigh?

The feeder weighs approximately 35 lb (15.9 kg) before adding wire and other accessories.

Does the 12VS include a MIG gun?

That depends on the selected product option. If you choose the Feeder Only configuration, a MIG gun is not automatically included. If you choose the 12VS + Profax Gun option, the gun is included as specified in that package.

Does the 12VS include a welding machine?

No. The X-TREME 12VS is a wire feeder and does not replace the welding power source. A compatible CC/CV DC power source is required.

Order the Miller SuitCase X-TREME 12VS

The Miller SuitCase X-TREME 12VS voltage-sensing wire feeder is a practical solution for professional welders who need portable MIG and flux-cored wire feeding in fabrication, construction, maintenance and industrial environments.

Choose Feeder Only when you already have the required gun and accessories, or select the 12VS with Profax MIG Gun configuration when you need a compatible welding gun included with the feeder.

For complete welding systems, verify power-source compatibility and the exact accessories included with your selected package before ordering.
