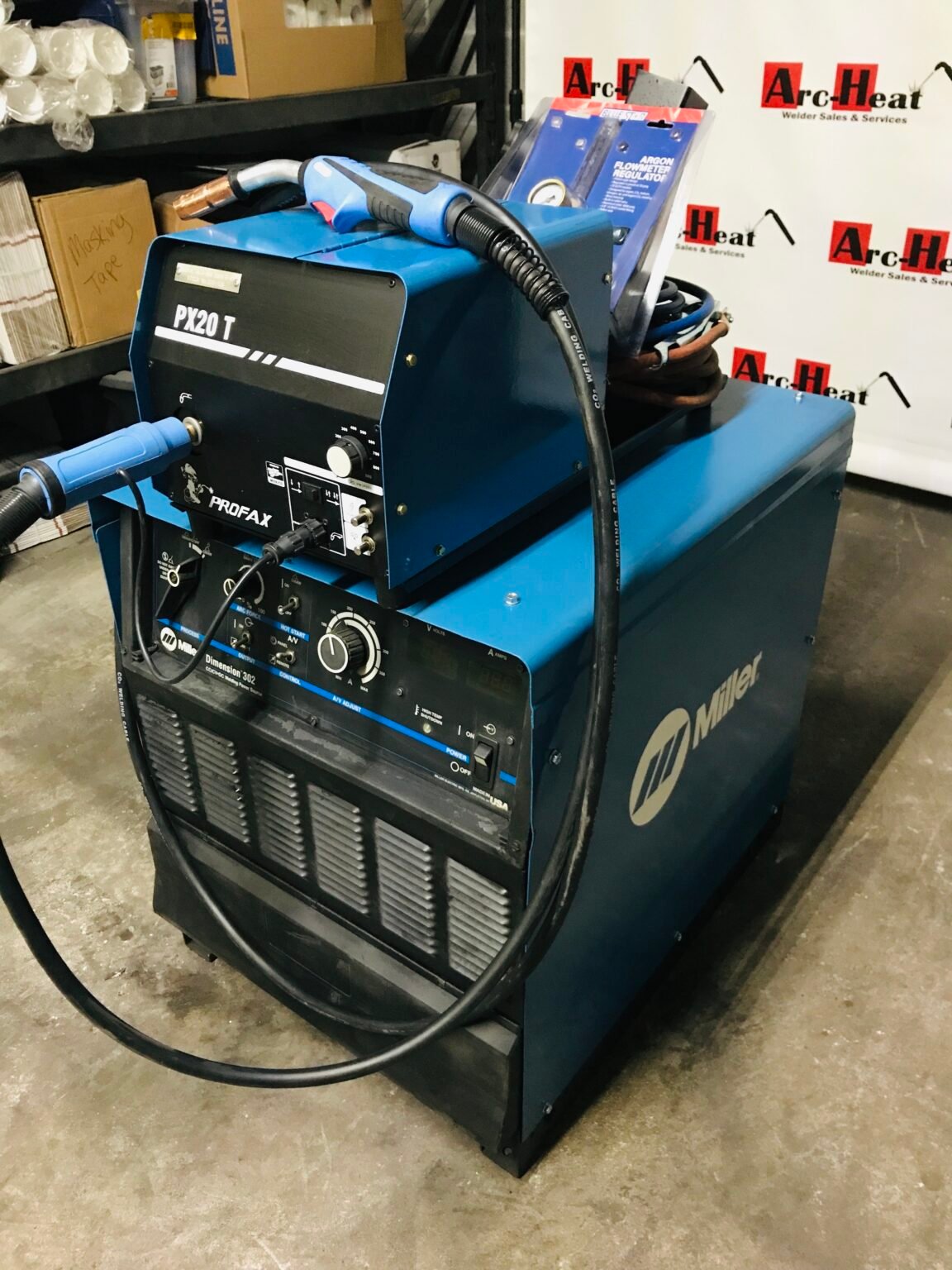

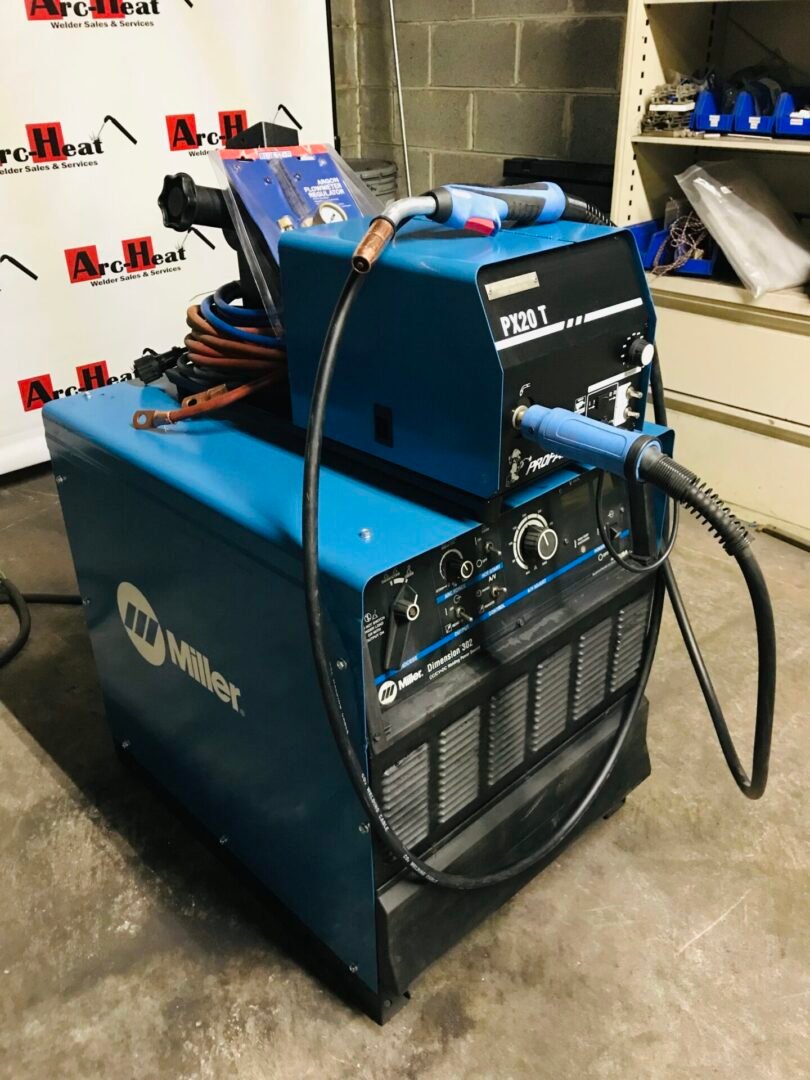

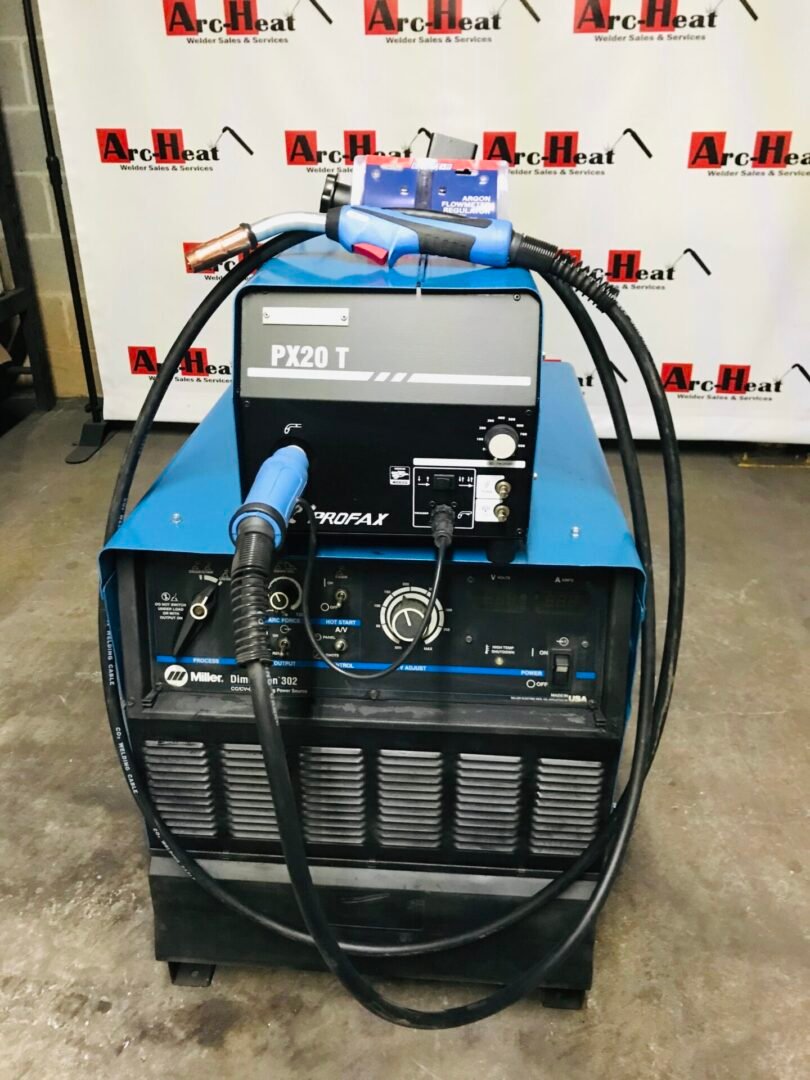

Miller Dimension 302 Multi-Process Welder Complete Package

The Miller Dimension 302 Multi-Process Welder Complete Package is a heavy-duty welding system designed for fabrication shops, industrial maintenance, construction, manufacturing, pipe welding, shipbuilding and general repair applications. With 300 amps of welding output, 100% duty cycle, CC/CV operation and multi-process capability, the Dimension 302 provides a versatile welding platform for demanding shop and field work.

This complete package combines the Miller Dimension 302 power source with a compatible wire feeder, MIG gun, welding cables and hoses, giving operators the equipment needed to get started with MIG and flux-cored welding while retaining the flexibility of Stick and DC TIG processes.

What’s Included

The exact accessories can vary according to the package configuration. The complete package is designed around the following equipment:

• Miller Dimension 302 welding power source
• Compatible Miller wire feeder
• MIG welding gun
• Welding cables
• Gas hose
• Required package connections and accessories

Note: Running gear, cylinder rack and other accessories should only be considered included when specifically listed with the selected package configuration.

If you require a specific wire feeder, cable length, running gear or cylinder rack configuration, contact Prime Welding Supply before ordering so the package can be confirmed.

300-Amp Industrial Welding Power

The Miller Dimension 302 delivers 300 amps at 32 volts DC at a 100% duty cycle, providing continuous welding capability for demanding production and fabrication environments.

Its CC/CV output makes the machine suitable for multiple welding processes without requiring separate dedicated power sources for every application.

The machine provides a broad output range, making it suitable for both general fabrication and heavier welding applications.

CC/CV Multi-Process Capability

One of the major advantages of the Dimension 302 is its constant-current (CC) and constant-voltage (CV) capability.

Constant Voltage – CV

CV output is used primarily for:

• MIG / GMAW
• Flux-Cored / FCAW

When paired with the appropriate wire feeder and gun, the Dimension 302 can provide a productive setup for continuous wire welding.

Constant Current – CC

CC output is suitable for:

• Stick / SMAW
• DC TIG / GTAW
• Air Carbon Arc applications when properly configured

This makes the Dimension 302 a practical choice for shops that handle several welding processes and materials.

Key Features

100% Duty Cycle

The Dimension 302 is rated at 300A at 32V DC with a 100% duty cycle, making it suitable for applications requiring extended welding periods.

Line Voltage Compensation

Line Voltage Compensation helps maintain consistent welding output when input voltage fluctuates within the machine’s specified operating range.

Fan-On-Demand™

Fan-On-Demand™ cooling operates the cooling fan when required, helping reduce unnecessary airflow through the machine and limiting the amount of dust and debris drawn through the equipment.

Digital Meters

Digital meters allow the operator to monitor welding parameters and make adjustments more easily during setup and operation.

115V Auxiliary Power

The machine includes a 15-amp, 115V AC duplex receptacle that can provide auxiliary power for compatible shop tools and equipment.

Thermal Protection

Thermal protection helps protect the power source from excessive operating temperatures and contributes to reliable operation during demanding welding applications.

Multi-Process Flexibility

The Dimension 302 can support multiple welding processes from one power source, reducing the need to maintain separate machines for MIG, Stick and TIG applications.

Welding Processes

The Miller Dimension 302 can be configured for several welding processes, including:

• MIG / GMAW
• Flux-Cored / FCAW
• Stick / SMAW
• DC TIG / GTAW
• Air Carbon Arc / CAC-A, when properly configured

The supplied wire feeder and MIG gun make the complete package particularly convenient for MIG and flux-cored welding.

Technical Specifications

Specifications can vary by exact factory configuration and package. Verify the machine nameplate and selected configuration for installation requirements.

Designed for Industrial Applications

The Dimension 302 is suited to a broad range of welding environments where reliable multi-process capability is required.

Fabrication Shops

Use the Dimension 302 for structural fabrication, equipment fabrication, general metalwork and repair.

Construction

Its multi-process design makes it useful for construction crews working with structural steel, equipment and general field fabrication.

Manufacturing

The CC/CV power source can support production welding applications when paired with the appropriate feeder and accessories.

Maintenance and Repair

The ability to use MIG, flux-cored, Stick and DC TIG processes makes the Dimension 302 useful for maintenance departments handling different repair requirements.

Pipe Welding

CC welding capability allows the machine to be configured for appropriate Stick and TIG applications commonly encountered in pipe and maintenance work.

Shipbuilding and Heavy Fabrication

The machine’s high-duty-cycle design and multi-process capability make it suitable for demanding fabrication environments.

Why Choose the Miller Dimension 302?

The Dimension 302 is designed for customers who need more than a basic MIG welding machine.

Instead of purchasing separate power sources for every welding process, the Dimension 302 provides a flexible CC/CV welding platform that can support multiple processes with the appropriate equipment.

The complete package also provides the wire-feeding equipment and welding accessories needed for MIG and flux-cored applications, making it a practical choice for professional welding shops and industrial operations.

Key Benefits

• 300A welding output
• 100% duty cycle at rated output
• CC/CV operation
• MIG and flux-cored capability
• Stick welding capability
• DC TIG capability
• Digital meters
• Line Voltage Compensation
• Fan-On-Demand cooling
• 115V auxiliary power
• Industrial multi-process design
• Compatible with Miller wire-feeding equipment

Complete Package Configuration

Before ordering, confirm the exact package configuration and included components.

Depending on the configuration, Miller Dimension 302 systems have been offered with components such as an S-74D wire feeder, Bernard MIG gun and welding cable packages.

If your order requires a particular feeder, MIG gun, cable length, running gear or cylinder rack, verify the selected configuration with Prime Welding Supply before checkout.

Who Is the Dimension 302 For?

The Miller Dimension 302 is a strong fit for:

• Professional welders
• Fabrication shops
• Industrial contractors
• Manufacturing facilities
• Construction companies
• Maintenance departments
• Heavy equipment repair facilities
• Pipe welding operations
• Shipbuilding and marine fabrication
• General industrial welding applications

Frequently Asked Questions

Is the Miller Dimension 302 a multi-process welder?

Yes. The Dimension 302 is a CC/CV welding power source that can be configured for MIG, flux-cored, Stick and DC TIG welding, as well as other applications when properly equipped.

How many amps does the Dimension 302 produce?

The Miller Dimension 302 is rated at 300 amps at 32 volts DC with a 100% duty cycle.

Is the Dimension 302 a MIG welder?

It can be used as a MIG welding system when paired with a compatible wire feeder and MIG gun. The complete package provides the equipment required for wire-feed welding according to the selected configuration.

Can the Dimension 302 weld aluminum?

The machine can be incorporated into appropriate aluminum welding setups when compatible wire-feeding equipment, gun, shielding gas and consumables are used. The exact configuration should be confirmed for the intended aluminum application.

Can the Dimension 302 perform Stick welding?

Yes. The CC output of the Dimension 302 supports Stick welding applications using compatible electrodes and welding leads.

Can the Dimension 302 perform TIG welding?

Yes. The Dimension 302 can be configured for DC TIG welding. A suitable TIG torch, gas equipment and controls are required.

What input power does the Dimension 302 require?

The Dimension 302 configuration referenced here uses 230/460/575V three-phase input power at 60 Hz. Always verify the machine’s nameplate and exact configuration before installation.

Does the package include a wire feeder?

Yes, the complete package is designed to include a compatible wire feeder. Confirm the exact feeder model and accessories included with your selected package before ordering.

Does it include welding cables and a MIG gun?

The complete package is described as including welding cables, a MIG gun and hoses. Exact cable lengths and component models should be confirmed with the selected package.

Is running gear included?

Do not assume running gear or a cylinder rack is included unless it is specifically listed in the package configuration you are purchasing.

Order the Miller Dimension 302 Complete Package

For shops and industrial operations looking for a versatile Miller welding machine, the Dimension 302 provides a combination of 300-amp output, 100% duty cycle and CC/CV multi-process capability.

Select the complete package configuration that matches your welding requirements. For specific wire feeder requirements, cable lengths, running gear, cylinder rack or other accessories, contact Prime Welding Supply before ordering so the package can be confirmed.

Miller Dimension 302 — professional multi-process welding capability for fabrication, construction, maintenance and industrial applications.
